Channel Letter Sign Sectionals

This product contains multiple channel letter sign sectionals for use in permit drawings, shop drawings, production drawings and/or sales drawings. File formats included are as follows:

AI

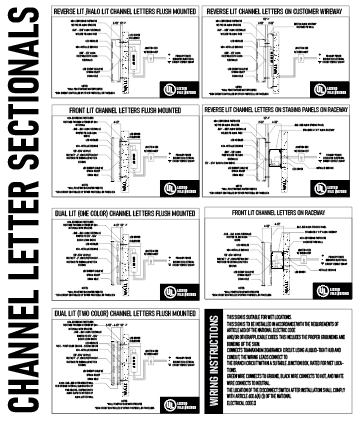

The following sign sectionals are included in file:

• REVERSE LIT /HALO LIT CHANNEL LETTERS FLUSH MOUNTED
• REVERSE LIT CHANNEL LETTERS ON CUSTOM WIREWAY
• FRONT LIT CHANNEL LETTERS FLUSH MOUNTED
• REVERSE LIT CHANNEL LETTERS ON STAGING PANELS ON RACEWAY
• DUAL LIT (ONE COLOR) CHANNEL LETTERS FLUSH MOUNTED
• FRONT LIT CHANNEL LETTERS ON RACEWAY
• DUAL LIT (TWO COLOR) CHANNEL LETTERS FLUSH MOUNTED

Areas of Sectional that pertain to specific company info or UL information are left blank or with placeholder text.

Sectionals are designed in a simple black and white style.

By purchasing these templates, the buyer agrees to the following terms:

LREYStudios is not responsible for any problems, issues, losses, errors, or any other issues that arise from the use of these templates. These are simple templates to help educate sign designers on the typical parts involved in the building of channel letters and to provide elements to make the design and preparation of sign drawings easier and more efficient. These designs have been prepared based off of the electrical sign code in Florida and what electrical inspectors expect to see as part of the installation process of said channel letters. You can modify, change, alter or duplicate these templates however you see fit within your organization after purchase. You are not allowed to share these templates with others outside your organization without additional purchase.
